Express Capture

About

Kaltura Express Capture enables recording content directly from a browser without the need to install any additional software. The enhanced Kaltura Express Capture is available for all KMS and KAF instances.  A new Big Red Button has been added to the Kaltura Capture suite to enable you to add content from your Webcam Recorder to MediaSpace or your KAF applications. Kaltura Capture Express requires the Recorder module to be enabled on your partner. The Kaltura HTML recorder allows you to use your webcam or audio devices to record video and audio entries directly from your browser. The browser must support webRTC.  For information about the supported browsers see Kaltura Express Capture Supported Browsers / Devices.

 Kaltura Express Capture requires the Recorder module to be enabled on your partner. The V7 player is created automatically after you enable and save the Recorder module configuration.

 Your instance must be configured to use HTTPS.  Kaltura Express Capture does not work over HTTP.

Features

To create media using your Webcam Recorder and/or Microphone

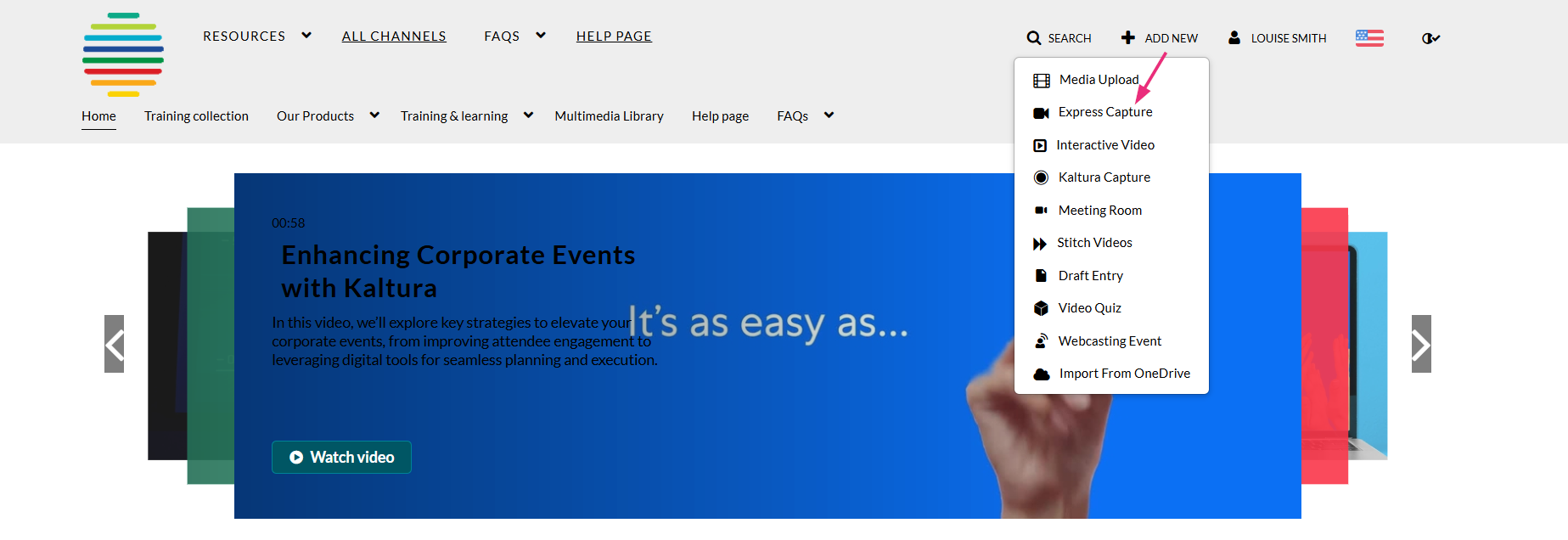

  1. Select Express Capture from the + Create drop down menu.
    The Record Media page is displayed.
  2. (Optional) Set the Camera or Audio Settings. The default settings are your personal computer's webcam and audio device.

Select the Camera to Use

  1. Click on the arrow to select the source camera (if you have multiple cameras) or audio device (if you have multiple audio devices) and to turn the camera/audio/screen capture on/off.
    For KAF applications, the screen is displayed with Back option.
  2. Click on the arrow next to the camera to display the available cameras and the on/off toggle for the camera.
  3. Select the camera type.

Select Your Screen and Audio

  1. Click on the arrow next to the screen option and the on/off toggle for the screen share.
    Note: Screen Capture may be enabled only when the Camera and Audio are enabled.
  2. Toggle the camera off if you want to create an audio only recording.
    The following screen is displayed indicating that you are recording Audio only. Click the red button to start recording.
    The audio indicator is displayed while you are recording audio only.
  3. Toggle the audio off if you want to create a visual-only recording.
    Both the camera and audio may not be turned off at the same time.
  4. Click the Record button to begin your recording. A three second countdown window is displayed.
  5. Start Recording.

    A timer is displayed next to the Stop and Cancel button.

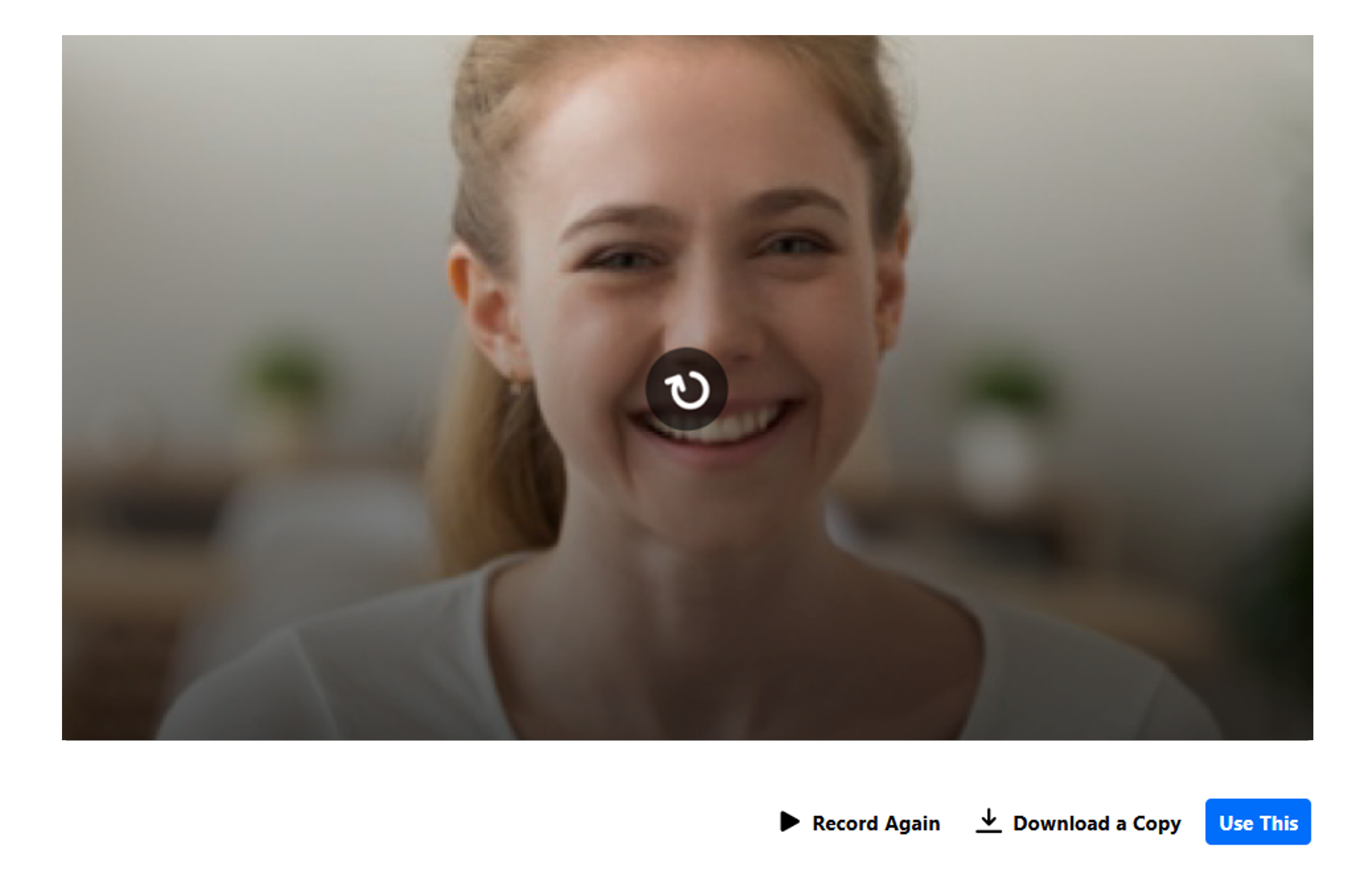

  6. Click the Stop button to end your recording. The following window is displayed.
  7. In the case of multi-stream video (if you are recording both the camera and sharing your screen), the streams are presented one above the other on the preview page and have the same controllers.
  8. Choose Record Again to retake the recording or Use This to use the current recording.
    “Record Again” discards the current recording. You will be reverted to the Record button where you can retake the recording,
    Select Use This when you are satisfied with your recording (after as many retakes as needed), to upload to Kaltura. The Upload window is displayed.

Downloading and Saving Your Recording

  1. Select Download a Copy to download a copy locally before you upload your file.
  2. Click Cancel to cancel the upload.

    For KAF applications, the Upload window is displayed as follows:
  3. While the file is uploading, on the Upload Media page you can:
  • Enter metadata information about the media and click Save.
  • Select the Privacy Settings. When adding new media and editing the metadata, select if the media will be private, unlisted, or automatically published to specific categories and/or channels when the media is ready.

 If you click Save before the file is completely uploaded, the media information is saved after the media is uploaded.

To view the media page after uploading is complete
  • Select My Media from the User dropdown menu.

    The uploaded file receives a default name and is saved automatically. The name is of the following format:
    “Video Recording - July 23, 2022 7:43pm EST” or “Audio Recording - July 23, 2022 7:43pm EST”.
    The entry details page displays the entry metadata and is editable if:
    - The recorded file is added from My Media or anywhere in KMS. The upload page displays the “Publish” option.
    - The recorded file is added from “Add to Category” (channel/gallery) or from the BSE. The “Publish” option” is not available.

Keyboard Shortcuts

For Recording

  • Start Recording/Record Again - Alt+Shift+R || ⌘+Option+R
  • Stop Recording - Alt+Shift+S || ⌘+Option+S
  • Pause/Un-Pause Recording - Alt+Shift+P || ⌘+Option+P
  • Upload/Use Recording - Alt+Shift+U || ⌘+Option+U

For Playback

It depends on the use of the V7  player OR the video tag.
